• Made from high strength polypropylene

• High impact resistance

• Unaffected by corrosive environments

• High level of resistance to UV light

• Stability down to -35°C and up to 105°C constant

Applications

• All steel screw fixing for direct fastening into many common building substrates
• Suitable for light to medium duty anchoring
• Will fix into wood and plasterboard without pre-drilling
• Can be directly screwed into sandstone, concrete, brick and stone with a pre-drilled pilot hole of 5.5mm. In softer substrates, 5mm may be more appropriate
• Designed to assist with compliance to BS 7671 and the Wiring Regulations 18th Edition
• Ideal for fixing fire resistant clips, consumer units, back boxes, conduit, cable trunking, smoke alarms etc.
• Remove the need to use plastic wall plugs - which typically melt at circa 160°C

Specification

• Made from heat treated C1018 - 1022 steel, 9.8 grade, with a Phillips recess, available with two head types
• Melting point of the material is circa 1500°C
• Tested to 975°C for a full 2 hours and retains its physical integrity
• Silver Ruspert® coated to 1000 hour salt spray specification for high corrosion resistance
• Resistant to fire, corrosion, solvents and chemicals

TDS
Ultimate Fixing Leaflet
DoC - Reach

• Pre-saturated IPA / Deionised water lint free wipes (70%/30%)
• Suitable for use on PCB’s, sockets, switches, and other electrical components
• Ideal for the removal of flux, inks, and other contaminants
• Excellent degreasing properties
• Dries quickly without leaving a residue
• Re-sealable tubs made from recyclable HDPE
• 100 cloths per tub - 130mm x 200mm

SDS

• M3.5 x 50mm = 200
• M3.5 x 75mm = 200
• M3.5 x 100mm = 100
• M3.5 x 35mm Extension Stud = 100

• Tough storage tubs complete with popular sizes of machine screws
• Ideal for all trades
• Keeps fixings safe and clean
• Available in cartons of 4

• Maintains a fire and smoke barrier around sockets in dry lining systems.
• High tack adhesion, pliable and mouldable with excellent self-bonding properties.
• Excellent acoustic properties.
• Pre-cut to fit most common socket boxes.
• Up to 2 hour fire rating based on certain configurations.

Usage:

Dry lining systems.
Around metal or plastic socket boxes.
Fire rated partition walls.

TDS

• Tough storage tubs complete with 4 popular sizes of machine screws
• No minimum order quantity
• For the installation of conduit fittings
• Solid brass material
• DIN 85
• Bright dipped finish

• Counter display
• Holds 2,000 Fix4Fire screws and/or Clip4Fire clips (20 boxes of 100)


  Suggested mix:

  Fix4Fire – 10 boxes of Pan Head & 10 boxes of Oval CSK Head

  Clip4Fire – 10 boxes of 1-2.5mm & 10 boxes of 4-6mm

  Or a combination of Fix4Fire & Clip4Fire (maximum 20 boxes)

• Dimensions:
  Height 335mm
  Width 155mm
  Depth 260mm

• Fire rated steel cable clip
• Designed to assist with compliance to 18^th Edition
• Bright zinc plated 24mm nail manufactured from Manganese Steel renowned for its high impact strength and resistance to abrasion
• Successfully tested by Warrington Fire under BS EN 50200:PH120 and BS 8434-2
• Complies with BS5839 section 26.2e
• Tested to 930° for 120 minutes
• Resistant to fire, corrosion, solvents & chemicals

Fire Test Report on request

TDS
DoC - Reach

200 clip4fire and 200 fix4fire mixed tradetub

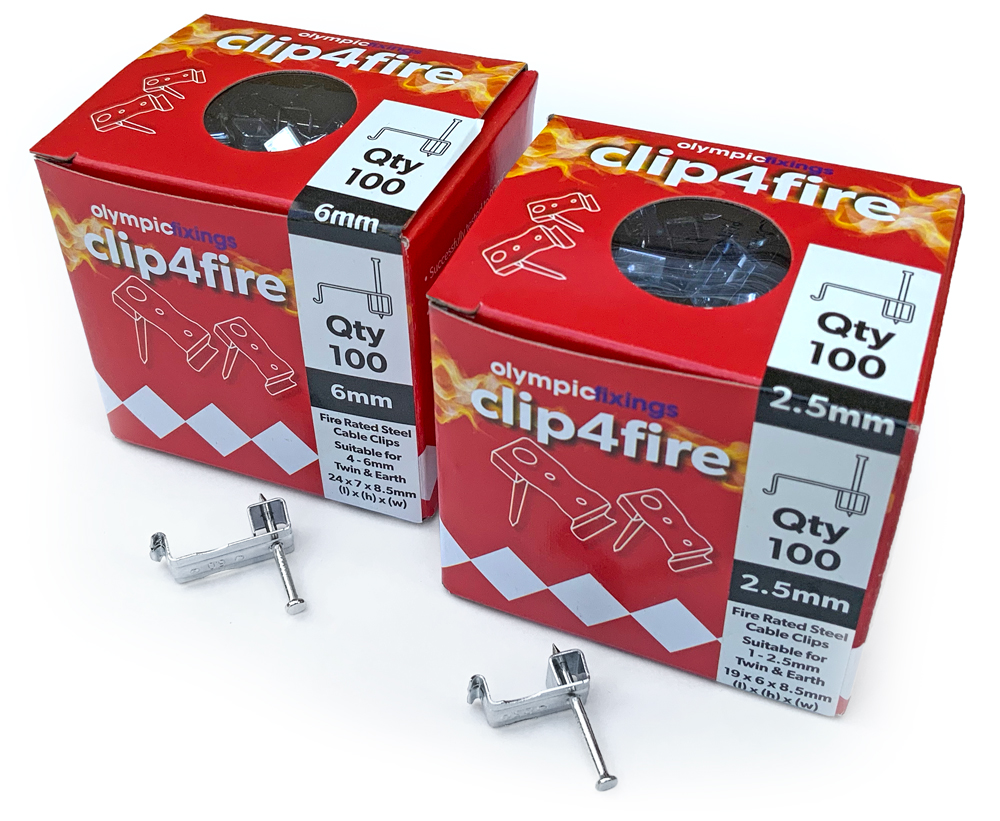

clip4fire

• 200 Fire rated steel cable clips accommodating 1-2.5mm T&E cable
• Designed to assist with compliance to 18th Edition
• Bright zinc plated 24mm nail manufactured from Manganese Steel renowned for its high impact strength and resistance to abrasion
• Successfully tested by Warrington Fire under BS EN 50200:PH120 and BS 8434-2
• Complies with BS5839 section 26.2e
• Tested to 930° for 120 minutes
• Resistant to fire, corrosion, solvents & chemicals

Fire test report on request

TDS
DoC - Reach

fix4fire

• 200 Fire rated all pan head screws 6 x 32mm
• For direct fastening into many common building substrates
• Suitable for light to medium duty anchoring
• Will fix into wood and plasterboard without pre-drilling
• Can be directly screwed into sandstone, concrete, brick and stone with a pre-drilled pilot hole of 5.5mm.
• In softer substrates, 5mm may be more appropriate
• Designed to assist with compliance to BS 7671 and the Wiring Regulations 18th Edition
• Ideal for fixing fire resistant clips, consumer units, back boxes, conduit, cable trunking, smoke alarms etc.
• Remove the need to use plastic wall plugs - which typically melt at circa 160°C

TDS
Ultimate Fixing Leaflet
DoC - Reach

• Tough storage tubs complete with a mix of both sizes of Clip4Fire metal cable clips
• Ideal for compliance to 18^th Edition
• Keeps fixings safe and clean
• NEW design - lid colour matches product type, label with product image and details for ease of recognition and increased speed of sale
• Available in cartons of 4

Fire test report on request

TDS
DoC - Reach

200 x 20mm Grommets and 100 x 25mm Grommets mixed tradetub

• Manufactured from a special formulation of black PVC
• Mixed tub of open grommets
• Ideal for use in untapped holes in material up to 1.6mm thickness
• Avoids damage to cables through trunking, cable tray and metal boxes

• Tough storage tubs complete with popular sizes of cable clips
• Ideal for all trades
• Keeps fixings safe and clean
• Available in cartons of 4

TDS

• Supplied in poly bags with hanging header card

• Manufactured from steel, zinc plated
• Expansion plugs
• Self centring internal guide for wood/chipboard screw
• Resistant to fire, designed to assist with compliance to BS 7671 amendment 3 and the Wiring Regulations 18th Edition
• Ideal for most utility pipes, clips and meters e.g. electric, gas and water

Applications

All purpose, heavy duty fixing.

TDS
DoC - Reach

• Universal fitment designed to work with Fein, Bosch, Makita DeWalt and many more machines
• High carbon steel blades are suitable for cutting plasterboard, wood and plastic
• Includes single and double size blades size blades ideal for fitting most embedded electrical boxes including metal back boxes, dry-lining boxes and pattresses
• Supplied in box with euro hanging slot

• All steel spacer bar saddle assembly
• Made from galvanised steel and powder coated to RAL 9010 semi gloss white
• Attractive finish matches PVCu conduit
• Ideal for indoor & external applications
• Resistant to solvents and chemicals, also fire and corrosion resistant
• Ideal for upgrading and new installations
• Designed to meet the general requirements of BS 7671-2008(2015) amendment 3 - chapter 52 regulation 521.11.201 where cables are to be supported by fire resistant fixings

TDS

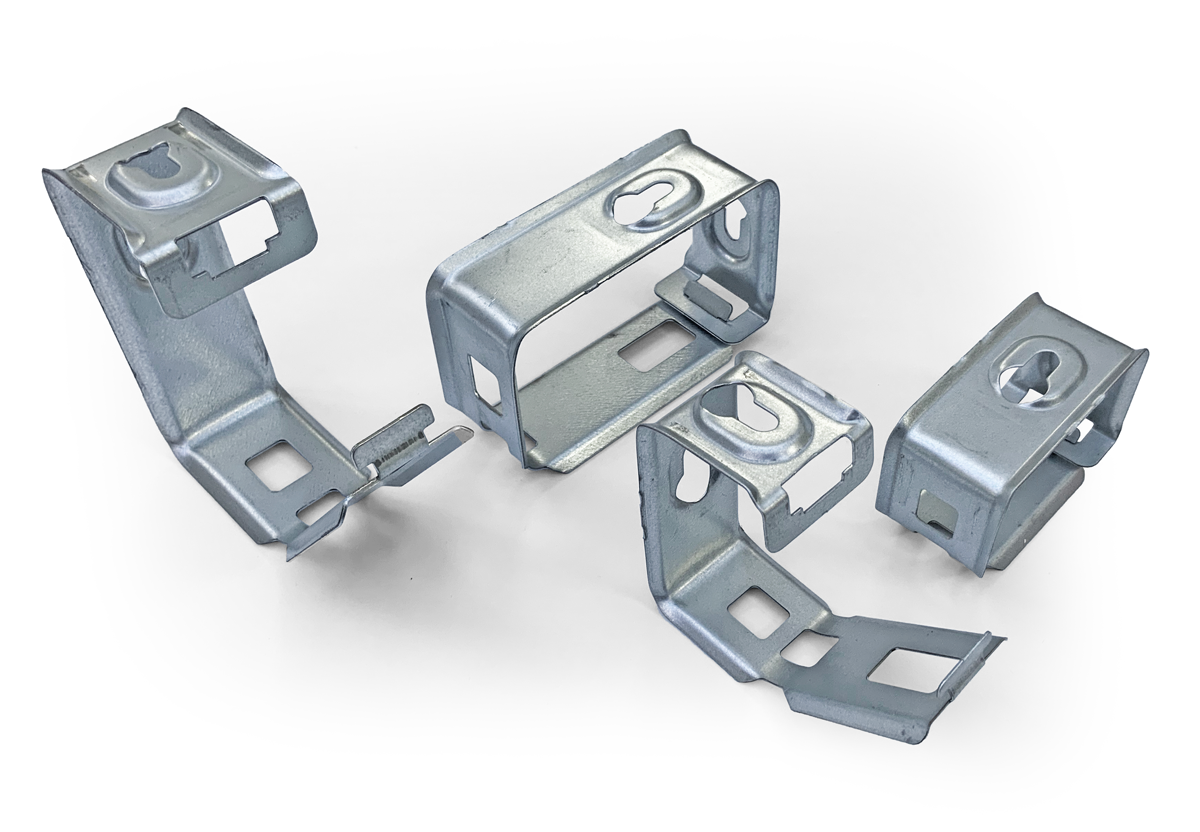

• Galvanised steel cable clamps
• Resistant to fire, corrosion, solvents & chemicals
• Easy opening and closing mechanism
• Can be mounted vertically or horizontally
• For use with 6mm screws
• Refer to TDS for loading & spacing parameters.

TDS

• Steel mini trunking cable retaining clip
• Manufactured from a specified steel with >1200°C melting point
• For use in standard mini trunking
• Designed to secure cables in new and existing installations
• Fix clip in position, lay cables inside clip and bend side tabs over to hold cables within trunking
• Compliant with BS7671 & BS5839-1 requirements, certified for 2 hours at 970°C

TDS
DoC - Reach

• Nails made from high carbon steel, hardened and bright zinc plated
• Suitable for most materials. Use in conjunction with pin plug where necessary
• Shrink wrapped in 1,000’s or 500’s

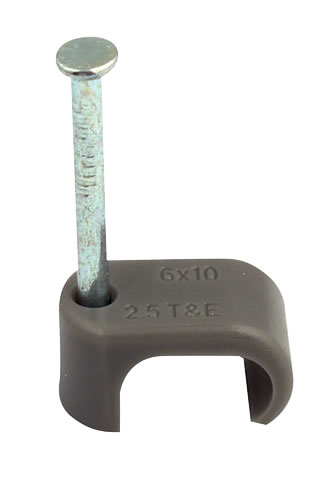

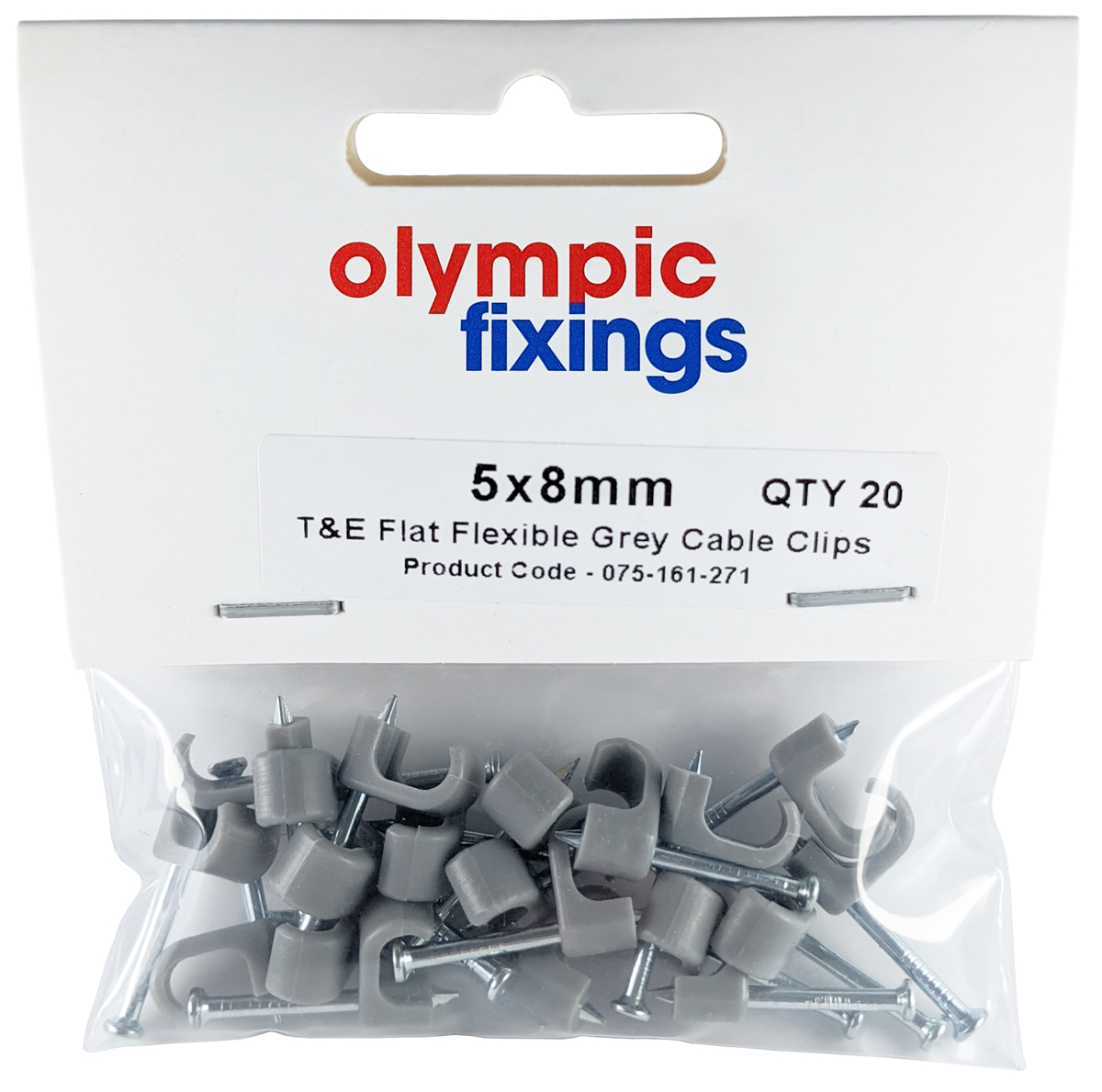

• For all flat cables

TDS

• Nails made from high carbon steel, hardened and bright zinc plated
• Suitable for most materials. Use in conjunction with pin plug where necessary
• Shrink wrapped in 1,000’s or 500’s
• Traditional cable clip for round flexible cables

TDS

• Supplied in poly bags with hanging header card

TDS

• Nails made from high carbon steel, hardened and bright zinc plated
• Suitable for most materials. Use in conjunction with pin plug where necessary
• Shrink wrapped in 1,000’s or 500’s
• For all flat cables

TDS

• Nails made from high carbon steel, hardened and bright zinc plated
• Suitable for most materials. Use in conjunction with pin plug where necessary
• Shrink wrapped in 1,000’s, 500’s or 250’s
• Flexible design for use with various cable sizes

TDS

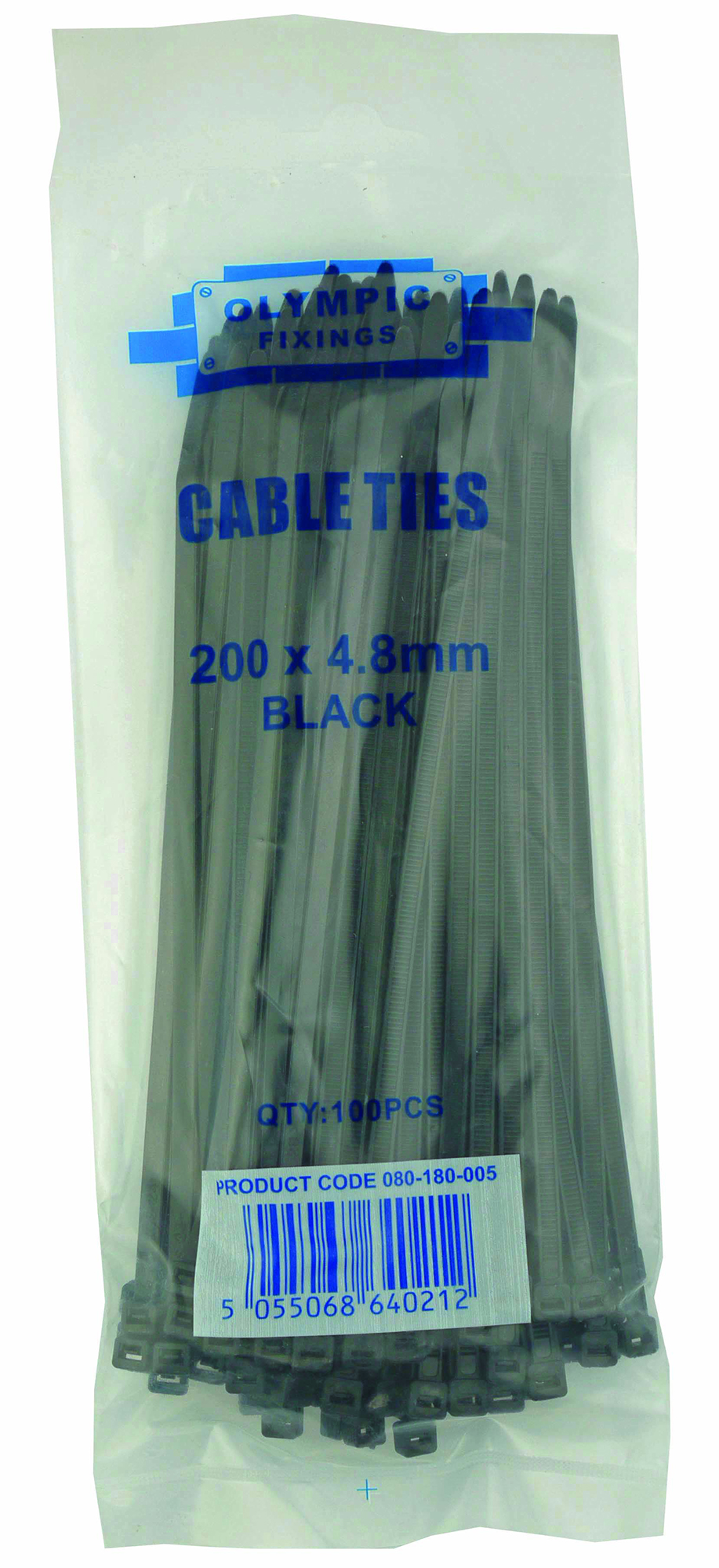

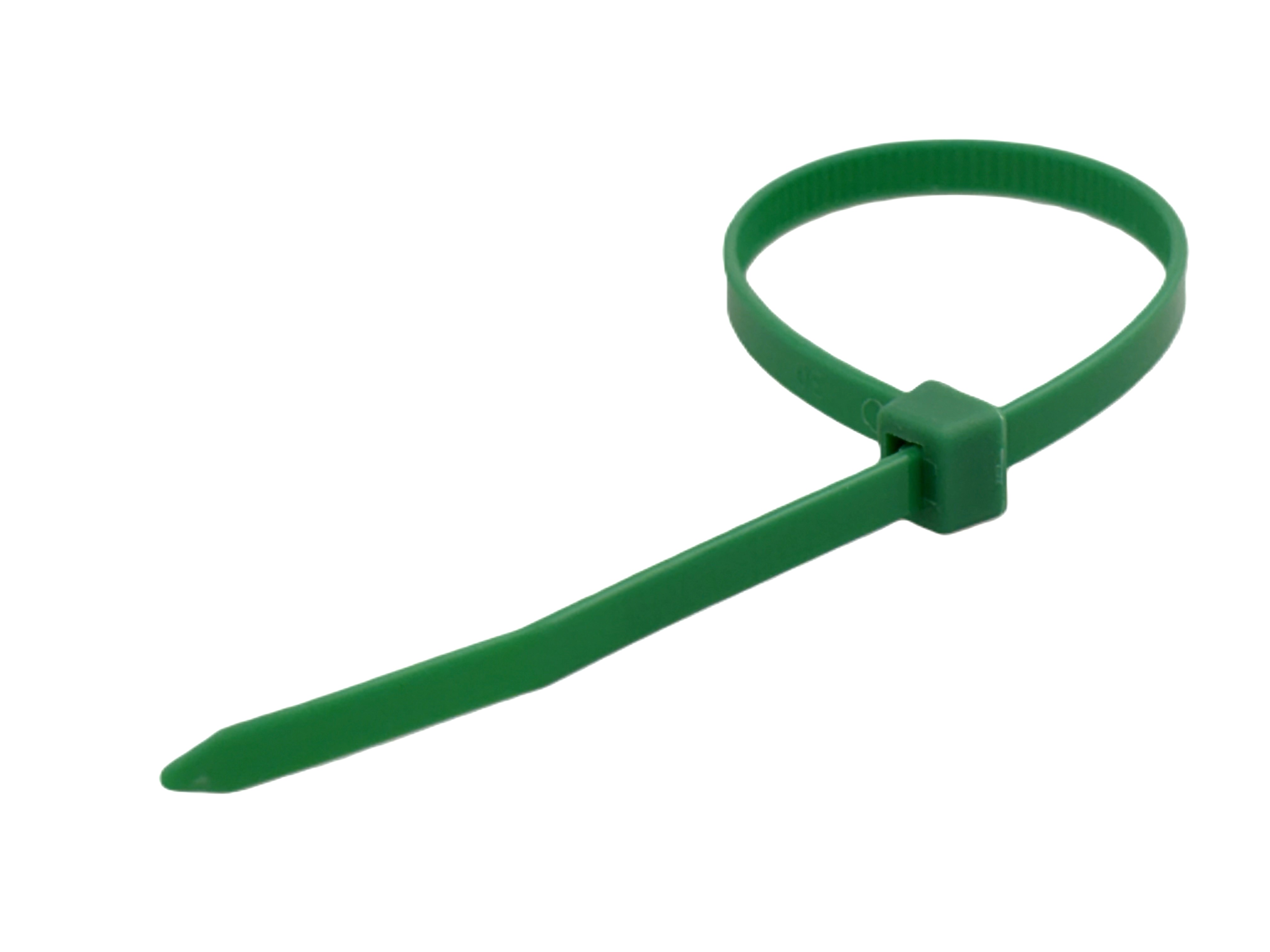

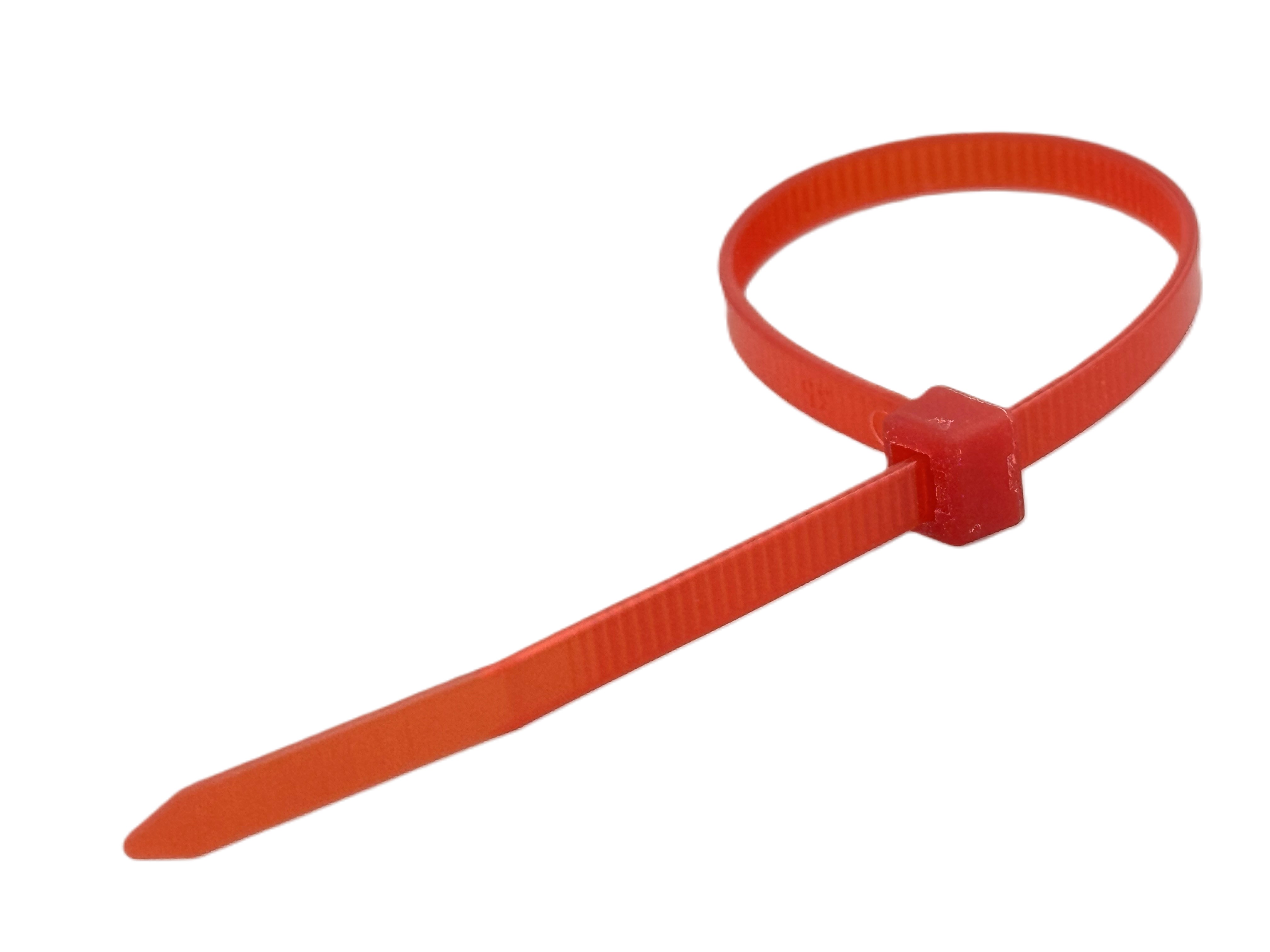

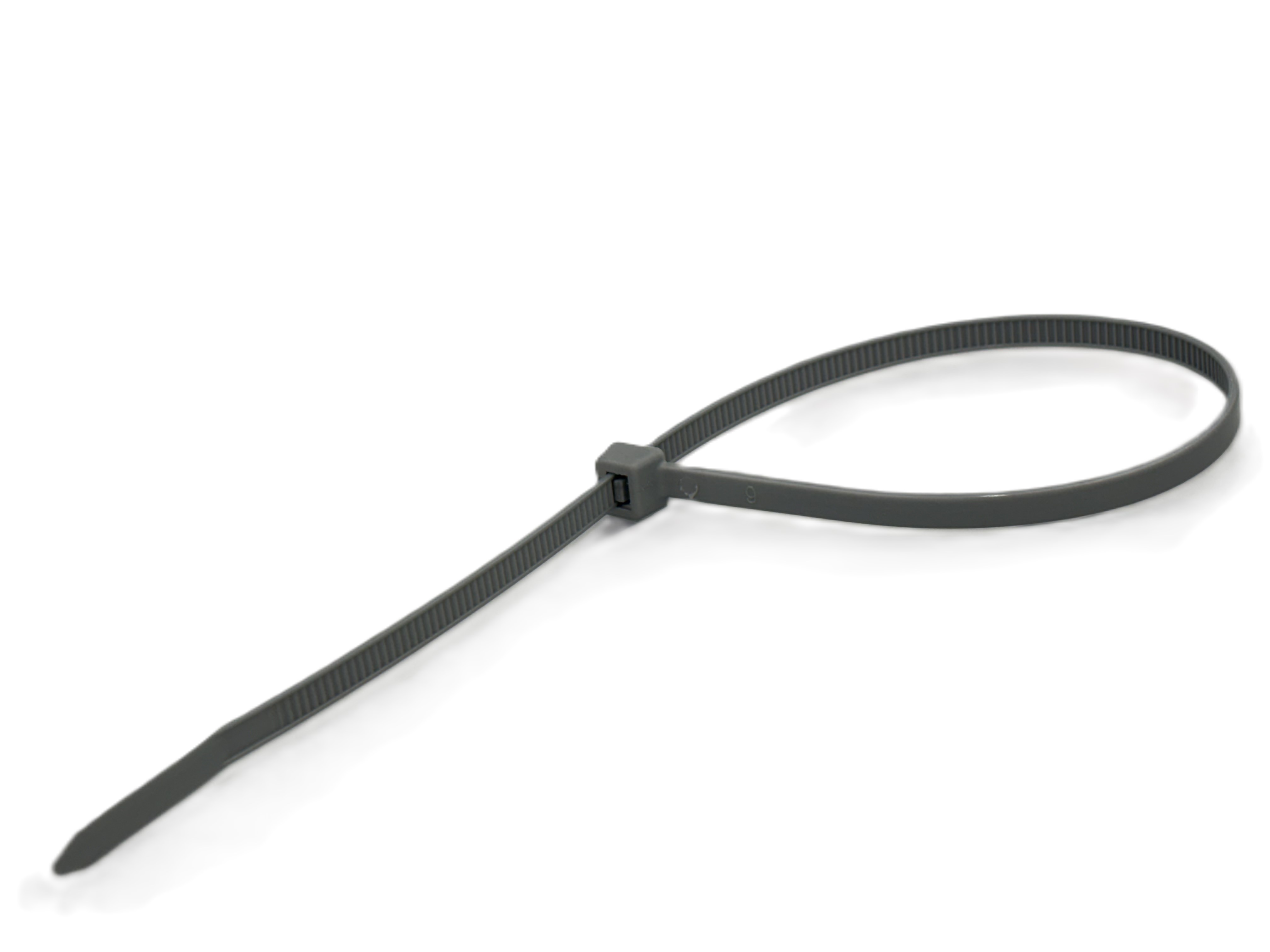

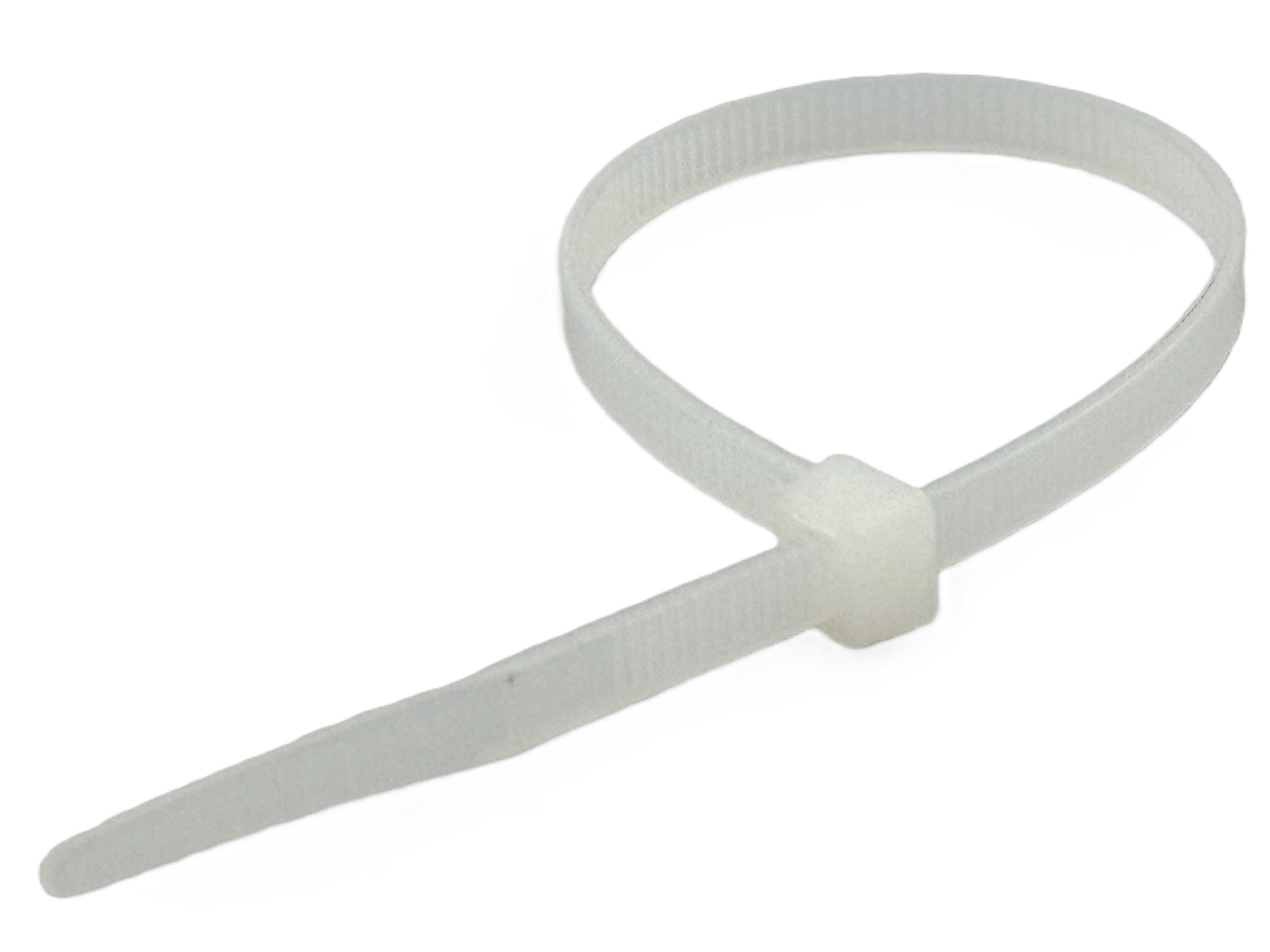

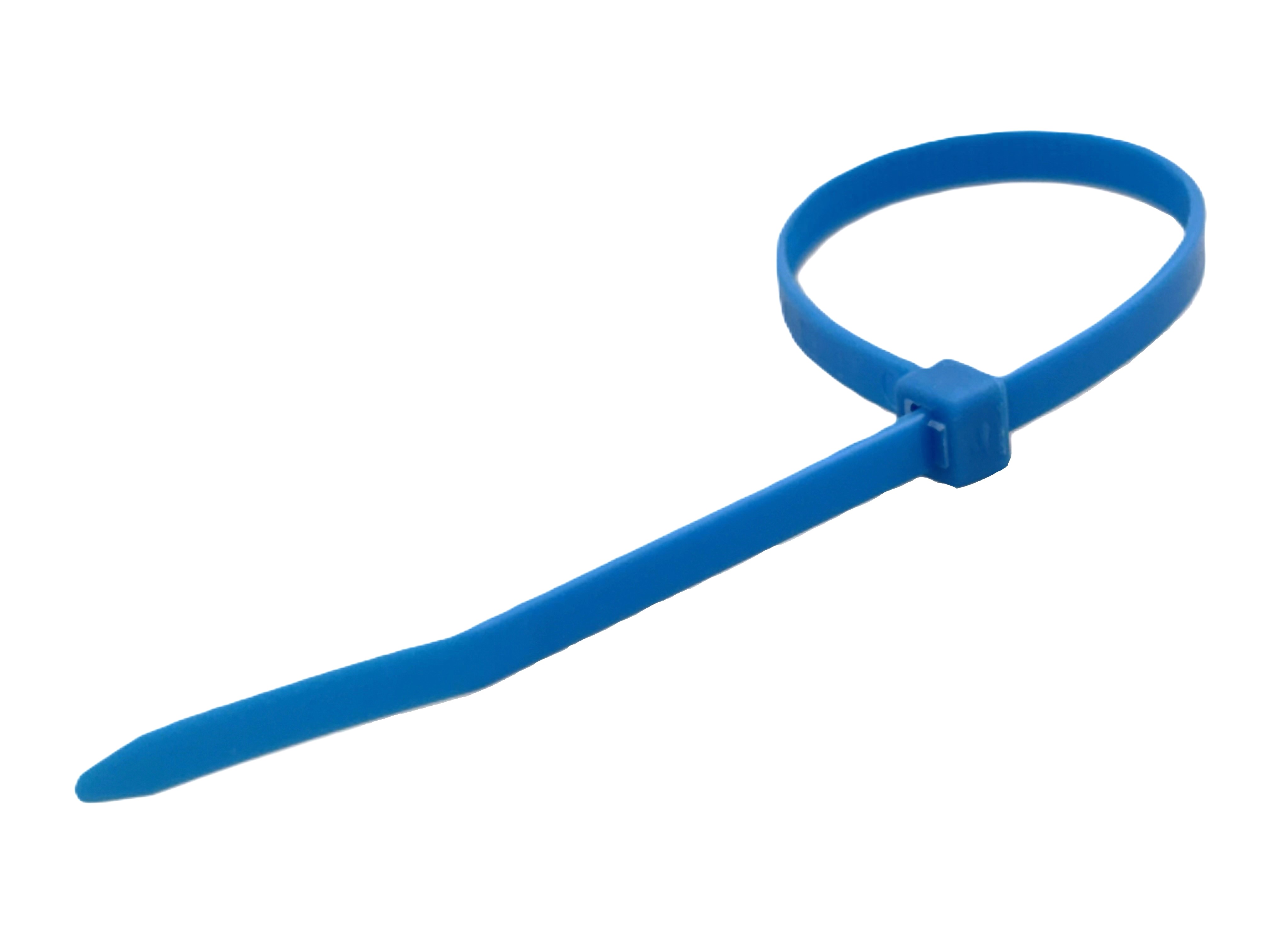

• Nylon 6/6
• Smooth rounded edges for easier handling and installation
• Bent rounded tip allows easier pick-up, insertion and pull out

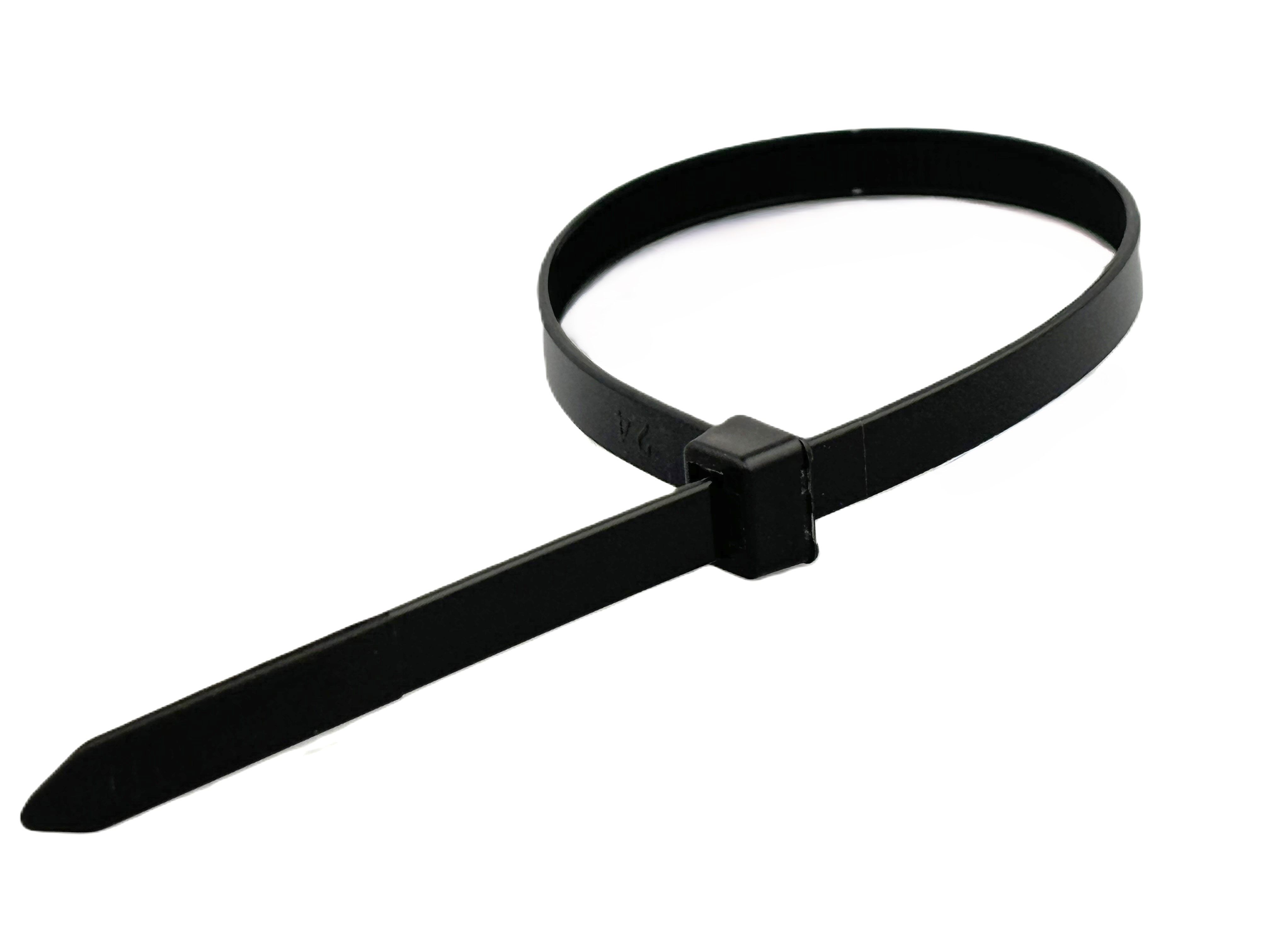

• Black cable ties are filled with carbon black and are recommended for general outdoor use
• All Nylon one piece mouldings with no metal parts
• Suitable for a wide range of applications including cable harnessing and cable fastening
• Working temperature range -40°C to +80°C
• Flammability rating: UL94 Class V2
• Supplied in labelled poly bags with hanging slot

TDS

• Hammer in fixing, a quick and easy way for securing cables to a wall
• Simply drill hole and hammer in
• Drill a 7mm hole for use in soft materials (e.g. wood, chipboard, plasterboard etc) and a 8mm hole for hard materials (e.g. brick, stone etc).
• Supplied in labelled poly bags with hanging slot
• UL Approved

TDS

• Used with cable ties for routing and securing wire bundles or cables. Their low profile allows use in limited access areas
• Self-adhesive foam pad adheres to most materials
• 2-way universal design
• Supplied in labelled poly bags with hanging slot

• Made from high quality A4 316 grade stainless steel
• Ideal for applications where high strength, corrosion and fire resistance are required
• UV resistant and halogen free
• Working temperature range -80°C to +500°C
• Ball lock allows fast and easy installation with positive grip
• Smooth rounded edges for safe handling

• Installation tool enables accurate and adjustable tensioning and tie end cutting
• Maximum tie width 7.9mm

• High strength cable tie mounts
• Made from A4 316 grade stainless steel
• Available with different fixing hole diameters to suit a range of screw sizes and cable weights
• Mount with fixing hole diameter 6mm can be used with Fix4Fire

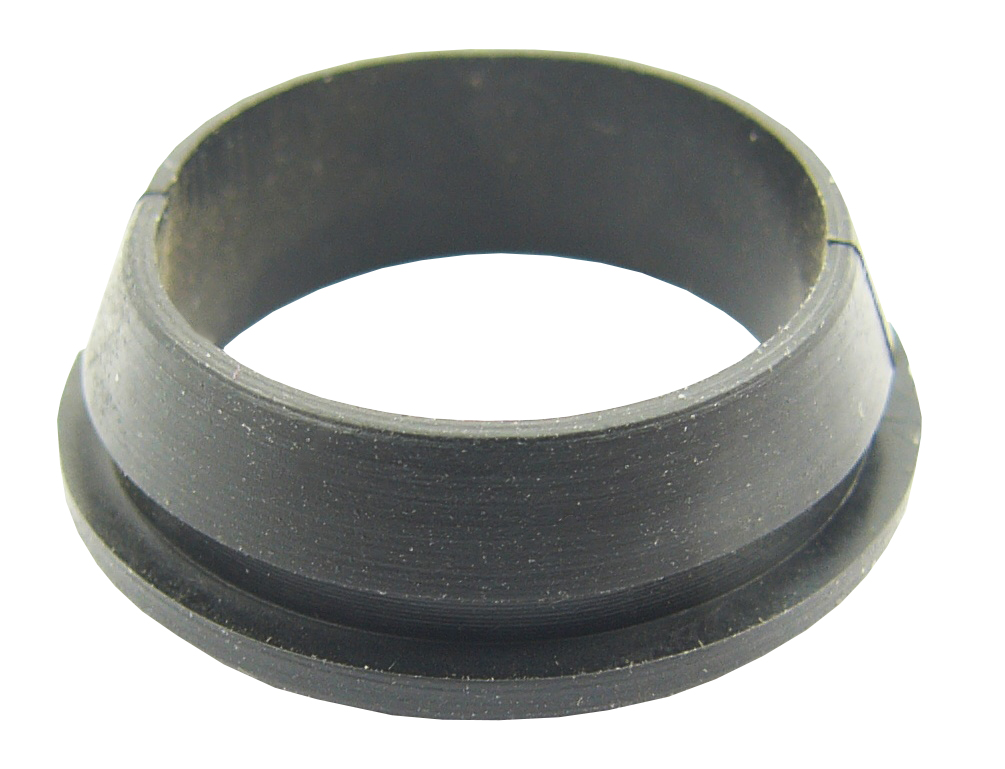

• Manufactured from a special formulation of black PVC
• Open & Blind/Closed types
• Ideal for use in untapped holes in material up to 1.6mm thickness
• Avoids damage to cables through trunking, cable tray and metal boxes

• Supplied in poly bags with hanging header card

• Manufactured from a special formulation of black PVC
• Ideal for use in untapped holes in material up to 1.6mm thickness
• Avoids damage to cables through trunking, cable tray and metal boxes
• Design enables faster installation

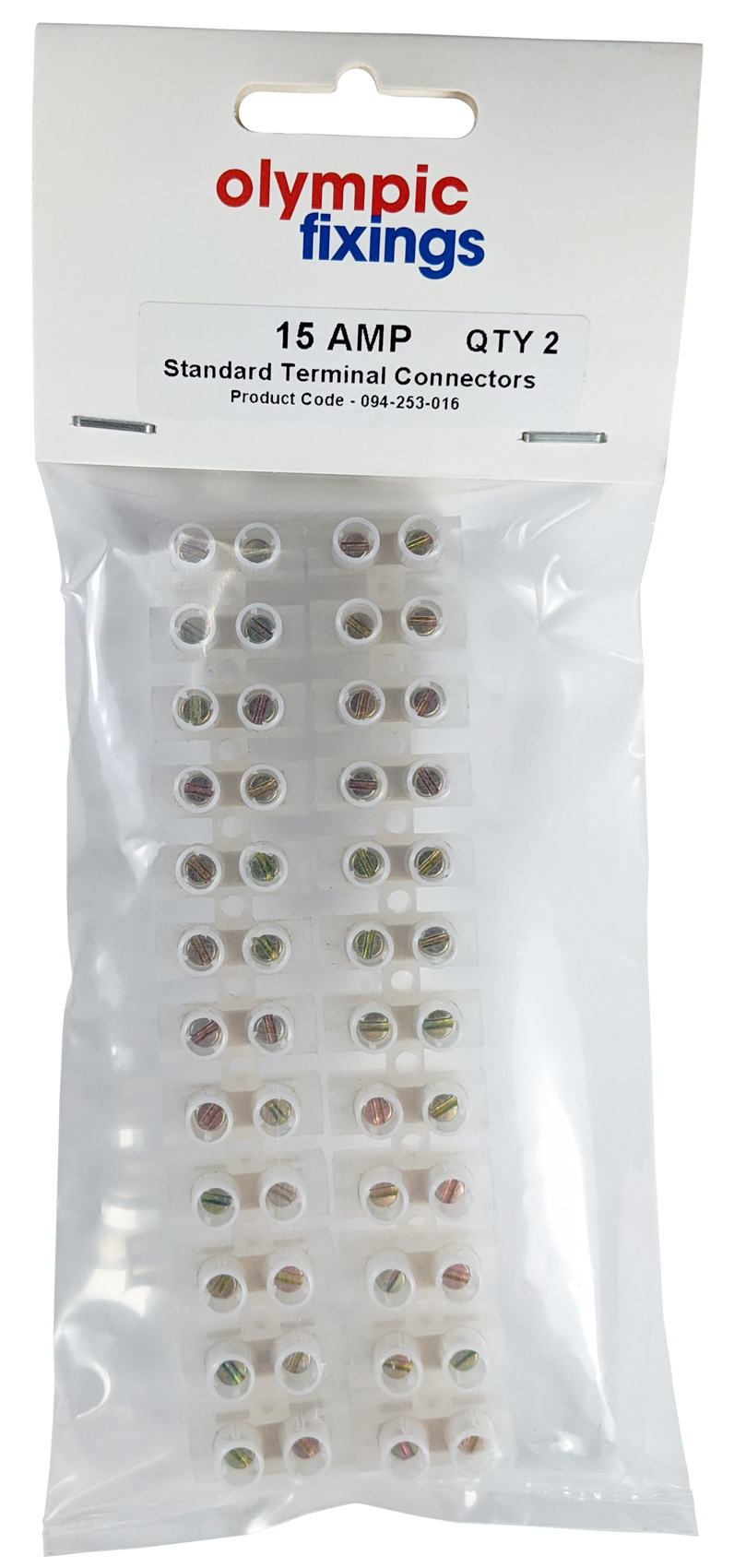

• Colour - Natural
• Flexible polyethylene material
• 12 way connector strip
• Brass inserts
• Complies with BS EN 60998 requirements
• Suitable for applications with a maximum working temperature of 70°C

• Colour - White
• Self extinguishing polypropylene material
• 12 way connector strip
• Brass inserts
• Complies with BS EN 60998 requirements
• Suitable for applications with a maximum working temperature of 110°C

• Designed to comply with BS 951
• Available for dry and humid/wet conditions
• To fit pipe diameters 12-32mm

VOC

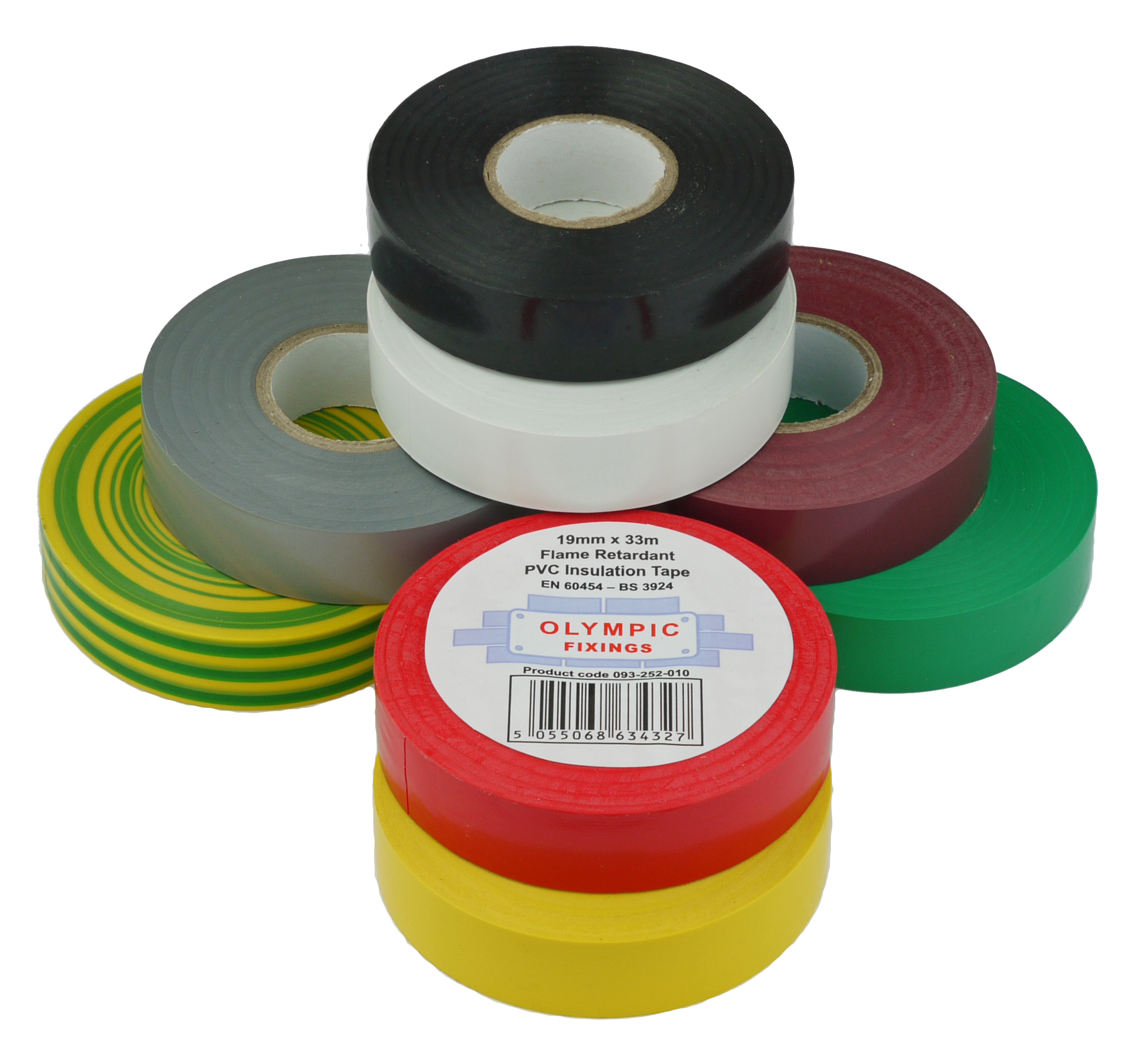

Polyvinyl Chloride Tape

• Manufactured to BS 3924, EN 60454
• Flame retardant and self extinguishing
• Gauge 0.13mm
• Suitable for repair, insulation, colour coding, cable bundling, panel building, loom harnessing etc.
• Available in ten colours
• Individually wrapped and shrink wrapped in sleeves
• Heat resistant up to 40 °C  4 hours



DoC - Reach
TDS

Socket Screws

• Used with switch and socket boxes
• Solid brass material
• DIN 964
• Supplied in labelled hanging poly bags

• Supplied in poly bags with hanging header card

• For the installation of conduit fittings
• Solid brass material
• DIN 85
• Bright dipped finish
• Supplied in labelled hanging poly bags

TDS

• For the installation of conduit fittings
• Solid brass material
• Bright dipped finish
• Supplied in labelled hanging poly bags

• Hex nuts and Form A washers
• Solid brass material
• Bright dipped finish
• DIN 934 for metric nuts
• DIN 125A for metric washers
• BS 57 for imperial nuts
• Supplied in labelled hanging poly bags

TDS

Socket Screws

• Used with switch and socket boxes
• Raised countersunk type to DIN 964
• Countersunk slot type to DIN 963
• Countersunk slot type suitable for low profile wiring accessories
• Steel
• Bright zinc plated or bright nickel plated
• Supplied in labelled hanging poly bags

TDS

• Supplied in poly bags with hanging header card

Olympic Steel Extension Stud M3.5 x 35mm: Used to extend the length of socket screws by 35mm.

• Steel material,
• Bright zinc plated,
• Suitable for M3.5 machine screws,
• Total length 35mm,
• REACH & RoHS compliant
• Supplied in labelled hanging poly bags.

• Supplied in poly bags with hanging header card

• Solid brass material
• Bright nickel plated
• Suitable for M3.5 machine screws
• Total length 35mm
• Supplied in labelled hanging poly bags

• Fully insulated screwdrivers with VDE approval to 1,000V
• Range includes all popular tip types and sizes
• Ergonomically shaped handle for control and high torque transmission
• Blades made from chrome-molybdenum steel with precision tips for superior torque transfer to DIN & ISO standards
• Blades have an injection moulded hard plastic covering
• Fully approved to VDE & GS specifications IEC 60900:2012. Individually tested to 10,000V and suitable for use around live equipment up to 1,000V

• Set contains:

  Slotted 2.5 x 0.4 x 80mm
  Slotted 4 x 0.8 x 100mm
  Slotted 5.5 x 1 x 125mm
  Slotted 6.5 x 1.2 x 150mm
  PZ1 x 100mm
  PZ2 x 100mm

• Fully insulated screwdrivers with VDE approval to 1,000V
• Range includes all popular tip types and sizes
• Ergonomically shaped handle for control and high torque transmission
• Blades made from chrome-molybdenum steel with precision tips for superior torque transfer to DIN & ISO standards
• Blades have an injection moulded hard plastic covering
• Fully approved to VDE & GS specifications IEC 60900:2012. Individually tested to 10,000V and suitable for use around live equipment up to 1,000V
• Supplied in counter display unit of 6 sets, each set individually packaged


• Set contains:

  Slotted 2.5 x 0.4 x 80mm
  Slotted 4 x 0.8 x 100mm
  Slotted 5.5 x 1 x 125mm
  Slotted 6.5 x 1.2 x 150mm
  PZ1 x 100mm
  PZ2 x 100mm

TDS

• Fully insulated screwdrivers with VDE approval to 1,000V
• Range includes all popular tip types and sizes
• Ergonomically shaped soft grip handle for control and high torque transmission
• Blades made from chrome-molybdenum steel with precision tips for superior torque transfer to DIN & ISO standards
• Blades have an injection moulded hard plastic covering
• Fully approved to VDE & GS specifications IEC 60900:2012. Individually tested to 10,000V and suitable for use around live equipment up to 1,000V


• Set contains:

  Slotted 3 x 0.5 x 100mm
  Slotted 4 x 0.8 x 100mm
  Slotted 5.5 x 1 x 125mm
  Slotted 6.5 x 1.2 x 150mm
  PZ1 x 100mm
  PZ2 x 100mm
  Slotted Tester 3.5 x 0.8 x 40mm

• Fully insulated screwdrivers with VDE approval to 1,000V
• Range includes all popular tip types and sizes
• Ergonomically shaped soft grip handle for control and high torque transmission
• Blades made from chrome-molybdenum steel with precision tips for superior torque transfer to DIN & ISO standards
• Blades have an injection moulded hard plastic covering
• Fully approved to VDE & GS specifications IEC 60900:2012. Individually tested to 10,000V and suitable for use around live equipment up to 1,000V
• Supplied in counter display unit of 6 sets, each set individually packaged


• Set contains:

  Slotted 3 x 0.5 x 100mm
  Slotted 4 x 0.8 x 100mm
  Slotted 5.5 x 1 x 125mm
  Slotted 6.5 x 1.2 x 150mm
  PZ1 x 100mm
  PZ2 x 100mm
  Slotted Tester 3.5 x 0.8 x 40mm

TDS

For cleaning out threads in electrical boxes and other thread restoring applications.

• Made from high speed steel with precision ground threads, taper lead and permanently fitted handle
• Long reach M3.5 version used for deep socket boxes
• Supplied in hanging blister packs

Applications

For cleaning out threads in electrical boxes and other thread restoring applications

TDS

• 2 sizes suitable for most applications
• Smaller size has pocket clip
• Hot forged blades
• Handles made from high quality cellulose acetate
• Ergonomic handle for secure grip
• Magnifying window in handle ensures an excellent view of the illuminated display
• Supplied with hanging clip

Instructions For Use

The voltage indicator is suitable for testing AC Voltages from 100v - 250v against earth.

The metal part on top of the indicator must be touched to operate it and the earthing position of the user largely determines whether it lights up or not.

Failure to light up therefore does not indicate with certainty that no voltage is present.

Damaged mainstesters must not be used.

• Robust plastic case supplied in wrap around retail sleeve or double blister packaging (downlight kit)
